| Characteristics Material 特性材質 |
Practical Frequency 使用頻率 |
Initial Permeability 初透磁率 |
Bm 飽和磁束密度 |
Curie Temperature 居里溫度 |
Specific Gravity 比重 |
Relative Loss Factor 比損耗因子 |
Relative Temperature Coefficient 初透磁率比溫度係數 |
|
|---|---|---|---|---|---|---|---|---|
| ft（MHZ） | μiac | Gauss | T.C（℃） | d（g/cm3） | tanδ/μi（×10-6MHZ） | αμr（×10-6/℃ 20℃~70℃） | ||

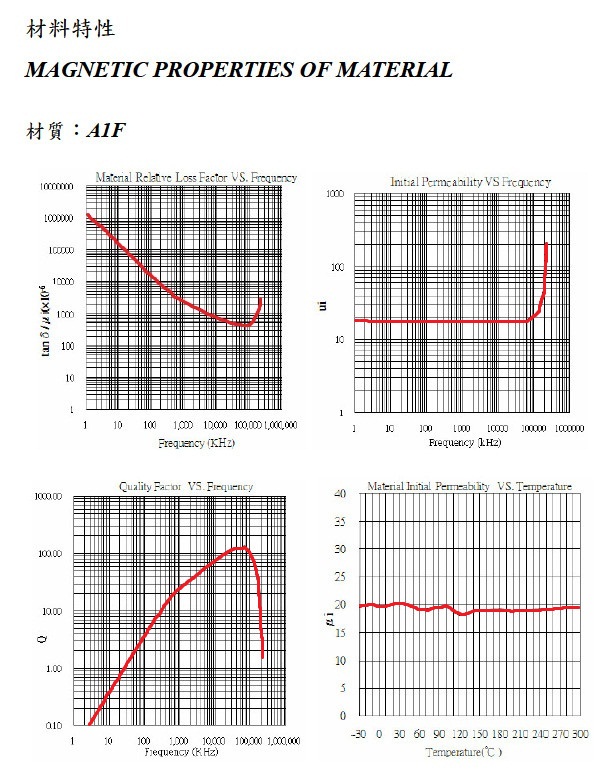

| A1F | 10-120 | 17 | 600 | >300 | 4.8 | <500 | 15-35 | More+ |

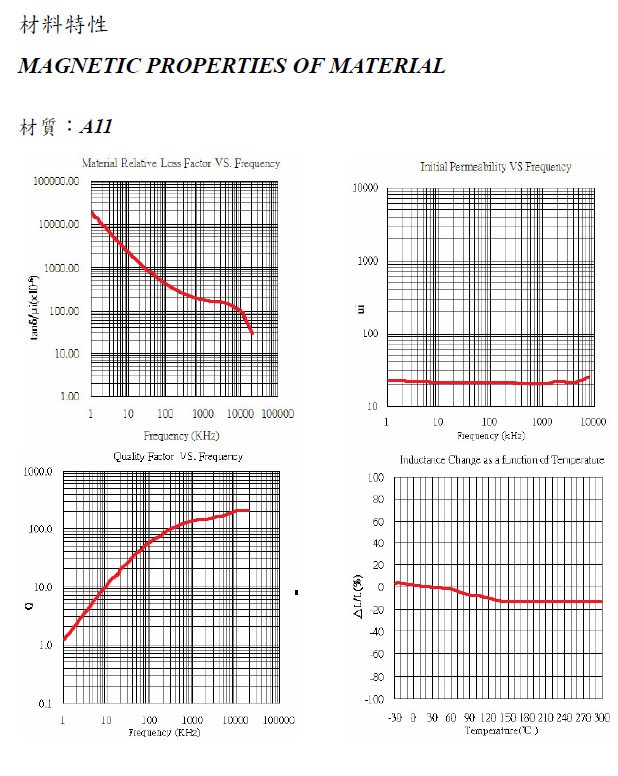

| A11 | 0.1-10 | 25 | 3200 | >300 | 49 | <100 10.0 | 10-20 | More+ |

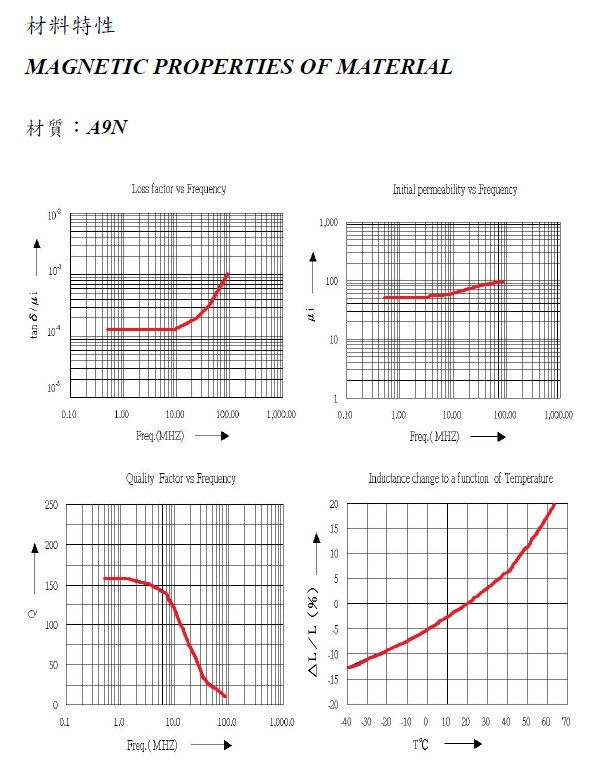

| A9N | 1.0-50 | 50 | 3400 | >300 | 4.8 | <600 50.0 | 30-80 | More+ |

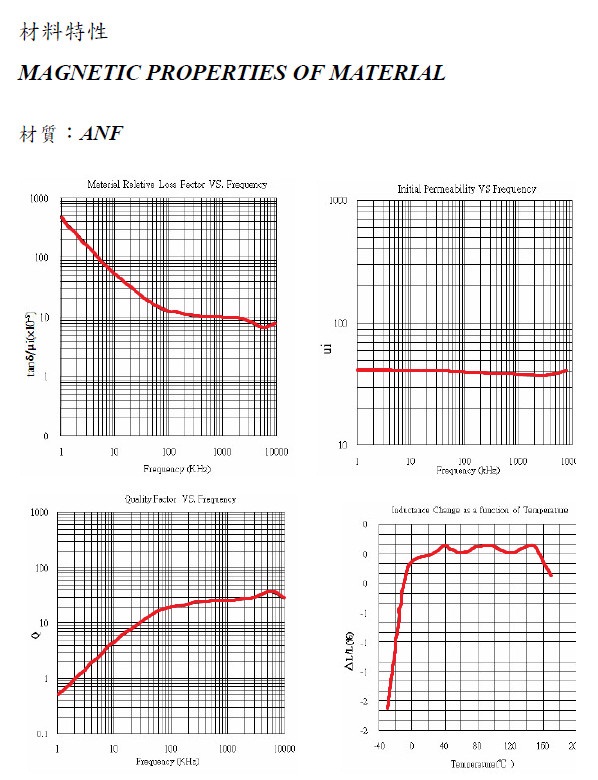

| ANF | 0.5-15 | 50 | 2500 | >300 | 5.0 | <126 0.10 | 0-4 | More+ |

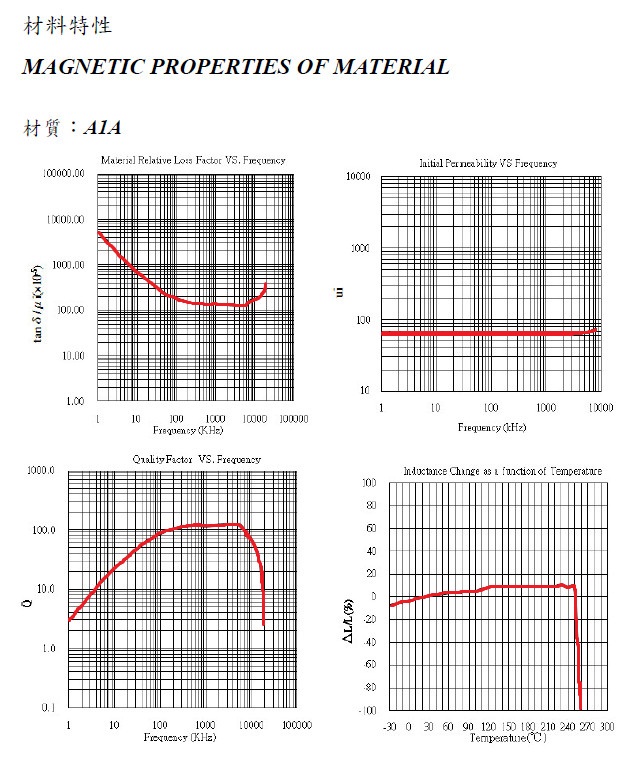

| A1A | 0.01-10.0 | 65 | 3600 | >250 | 5.0 | <185 0.10 | 9 | More+ |

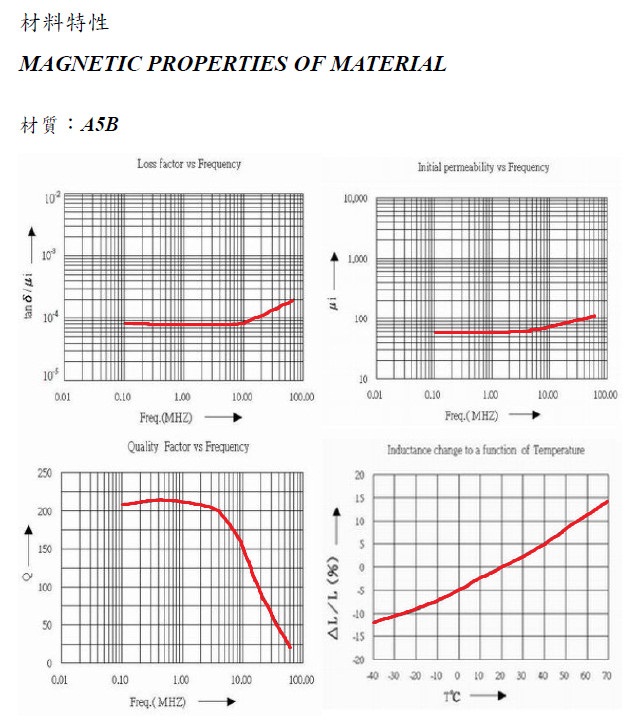

| A5B | 0.5-20 | 100 | 3250 | >300 | 4.8 | <400 20.0 | 5-15 | More+ |

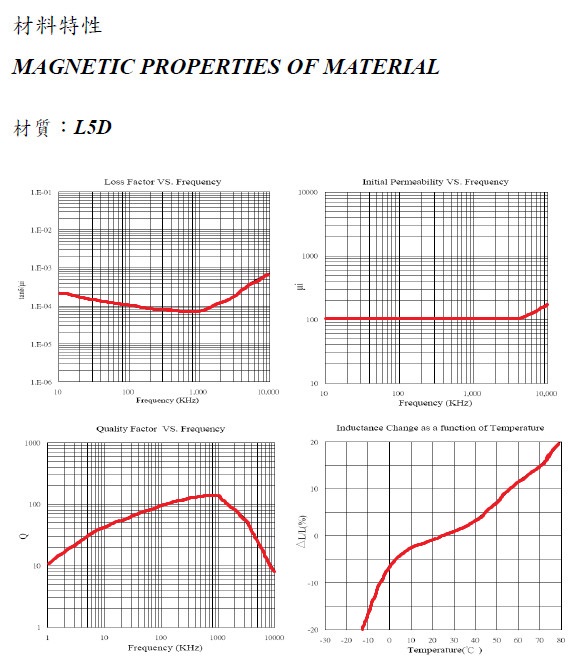

| L5D | 0.1-2.0 | 100 | 3200 | >200 | 4.9 | <70 0.80 | 15-40 | More+ |

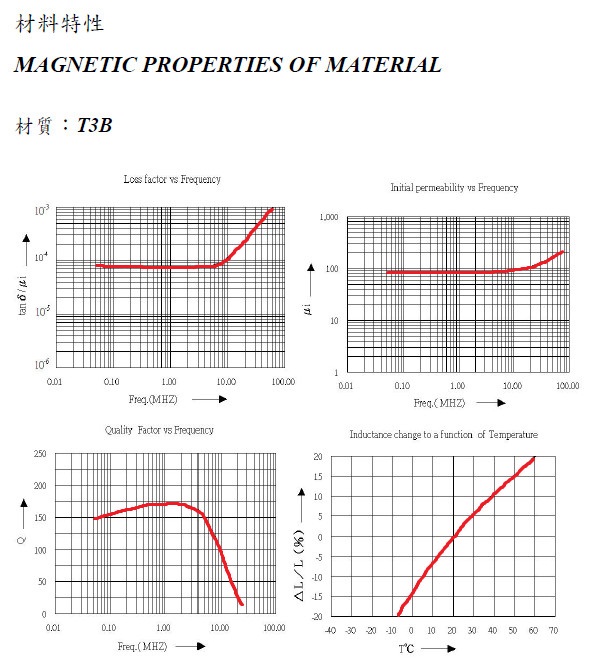

| T3B | 0.4-20 | 100 | 3180 | >300 | 4.5 | <160 20.0 | 55-130 | More+ |

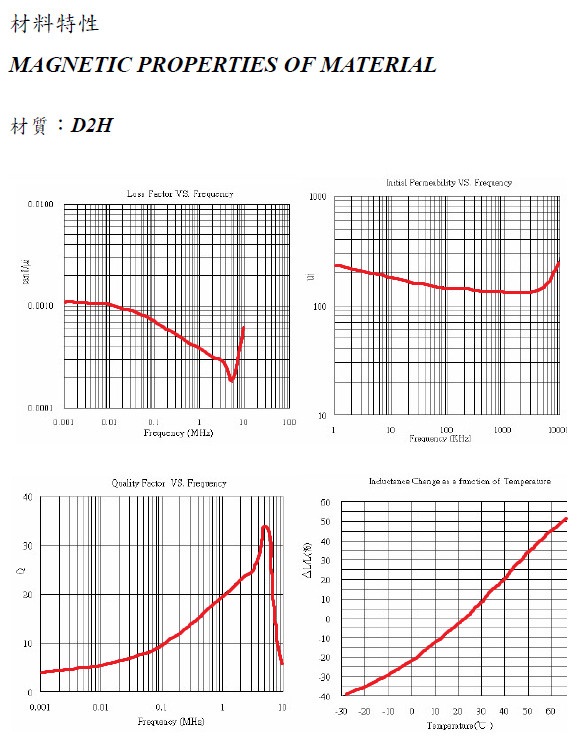

| D2H | 0.05-3.0 | 180 | 4100 | >250 | 5.2 | <800 0.10 | 30-50 | More+ |

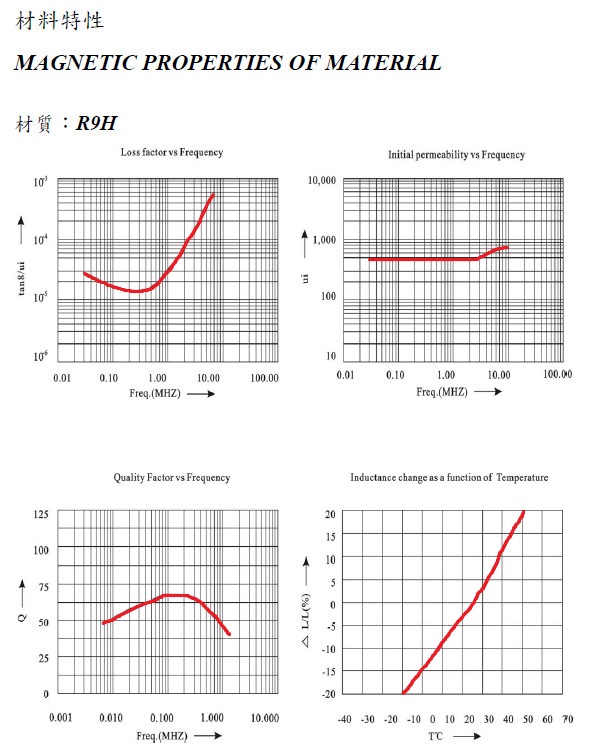

| R9H | 0.1-5.0 | 200 | 4100 | >210 | 4.8 | <35 0.10 | 20-30 | More+ |

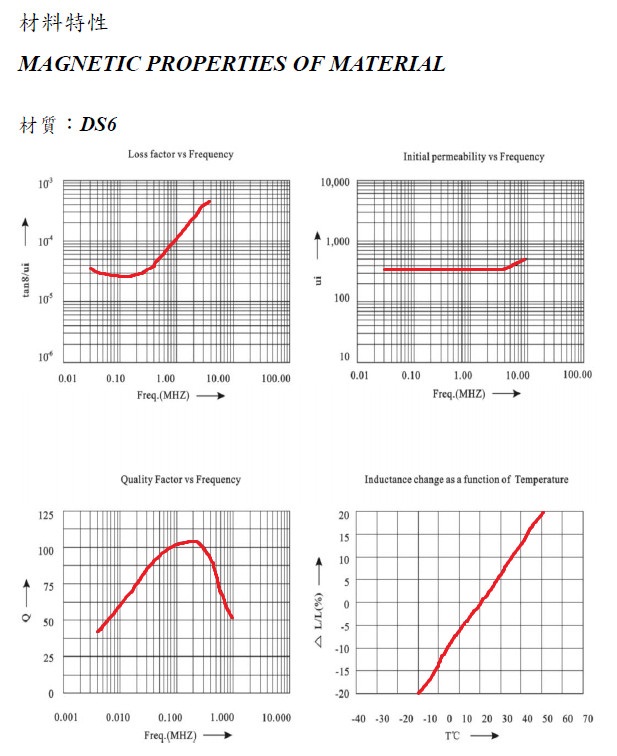

| DS6 | 0.05-3.0 | 200 | 5000 | >210 | 4.8 | <35 0.10 | 20-30 | More+ |

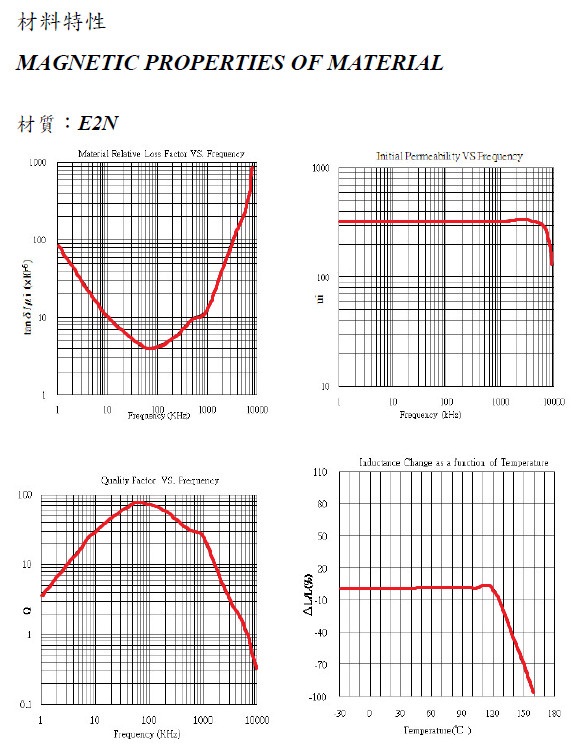

| E2N | 0.01-1.5 | 280 | 2700 | >140 | 5.1 | <45 0.10 | -3-+1 | More+ |

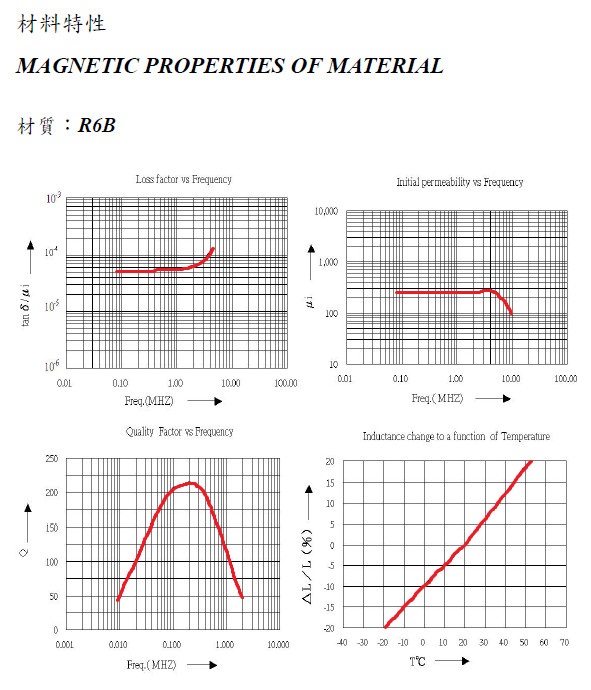

| R6B | 0.1-2.0 | 300 | 3180 | >150 | 4.9 | <65 2.00 | 10-30 | More+ |

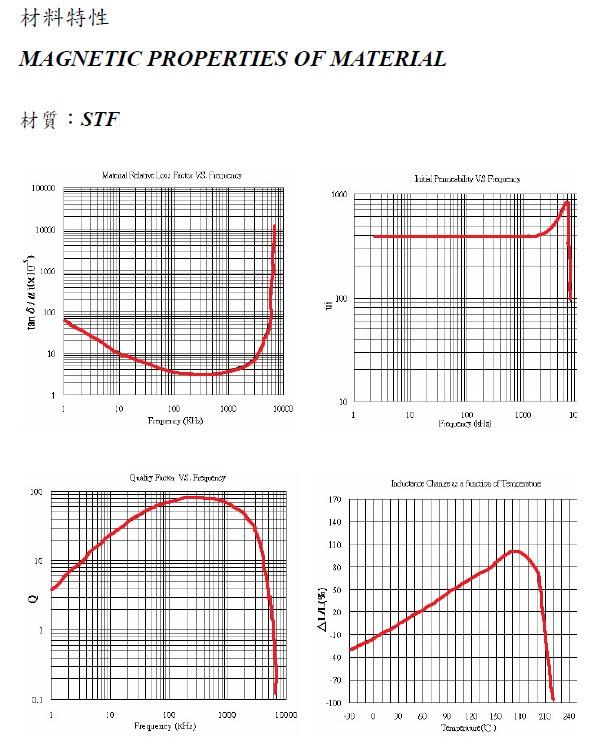

| STF | 0.01-3.0 | 350 | 4100 | >210 | 5.1 | <3.7 0.10 | 2-5 | More+ |

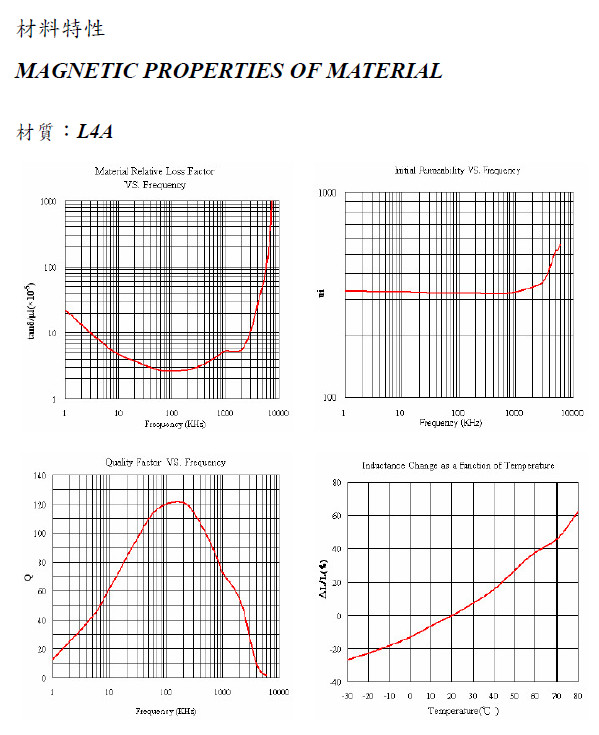

| L4A | 0.05-1.0 | 400 | 4200 | >240 | 5.1 | <30 0.10 | 10-30 | More+ |

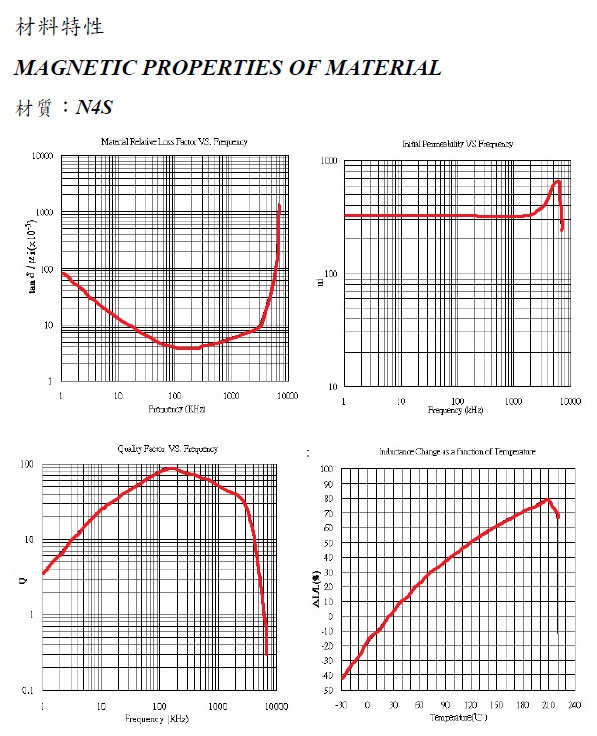

| N4S | 0.05-3.0 | 400 | 4500 | >230 | 5.2 | <39 0.10 | 25-45 | More+ |

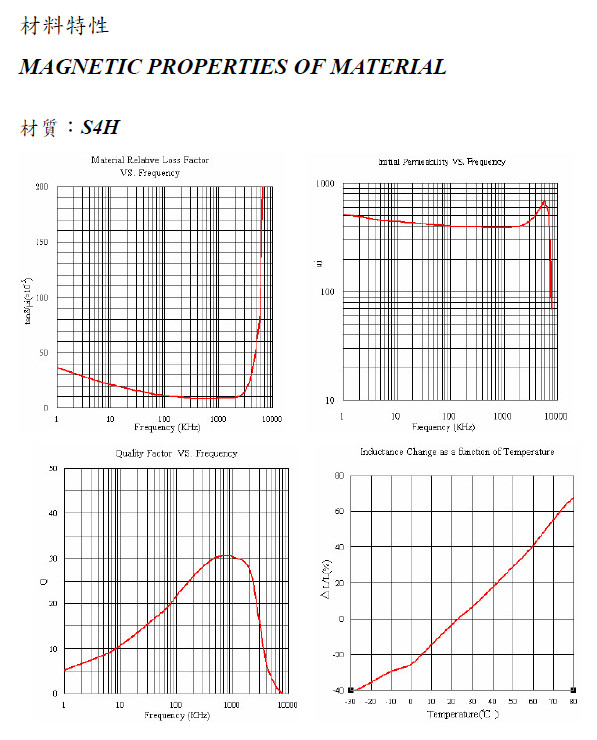

| S4H | 0.05-2.0 | 400 | 3800 | >210 | 5.1 | <120 0.10 | 15-25 | More+ |

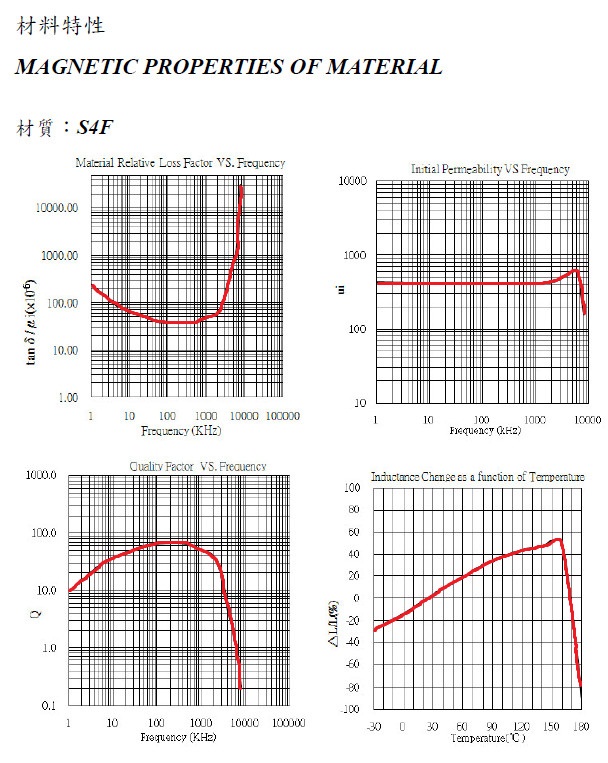

| S4F | 0.05-2.0 | 400 | 3760 | >180 | 5.11 | <38 0.10 | 10 | More+ |

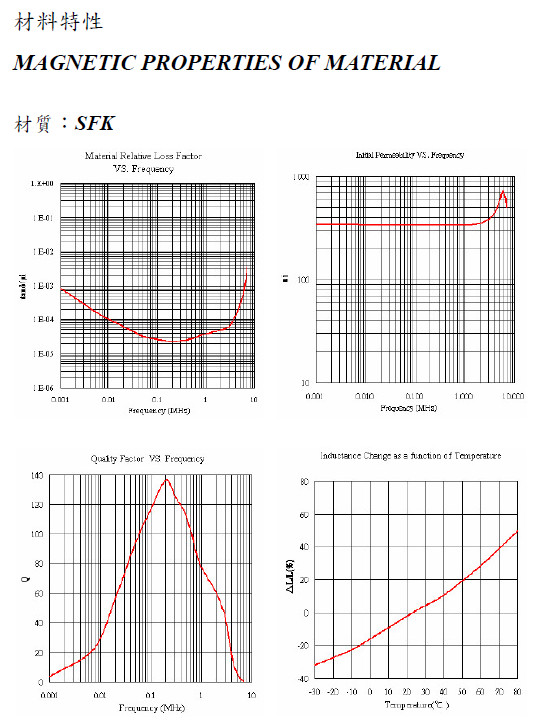

| SFK | 0.05-3.0 | 400 | 4600 | >230 | 5.1 | <2.5 0.10 | 1-3 | More+ |

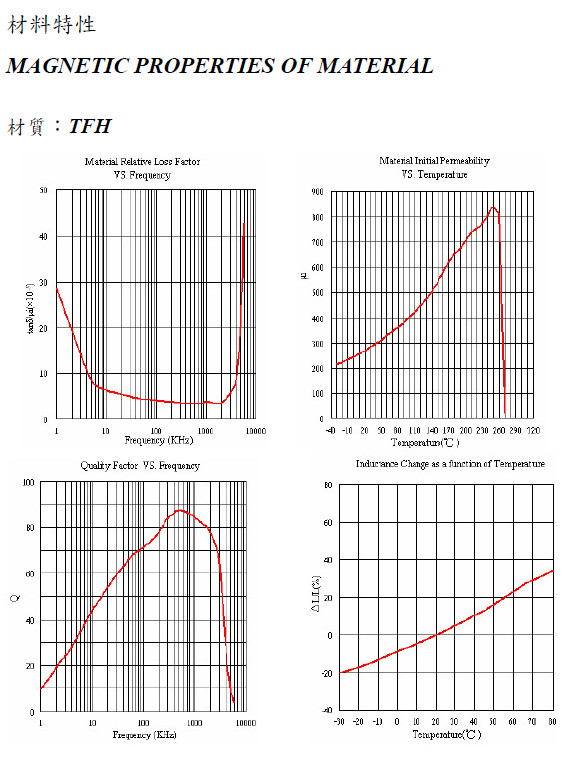

| TFH | 0.05-3.0 | 400 | 4500 | >250 | 5.2 | <42 0.10 | 13-25 | More+ |

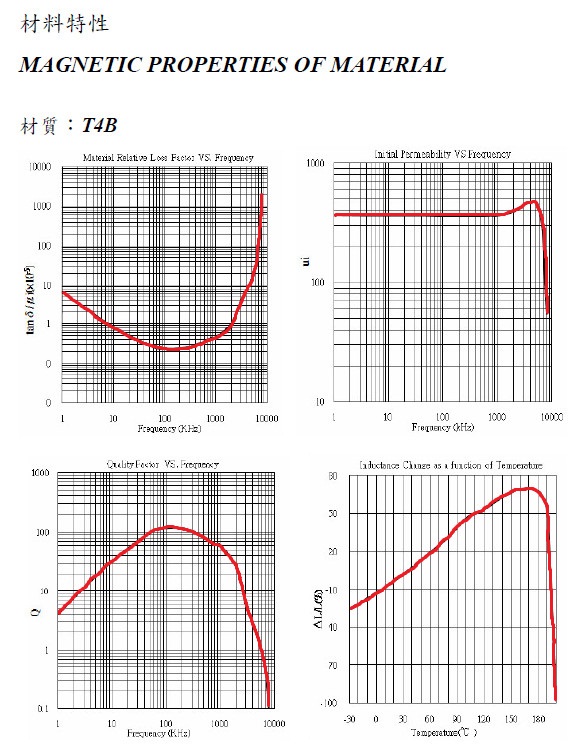

| T4B | 0.05-2.0 | 420 | 4000 | >210 | 5.1 | <23 0.10 | 10-20 | More+ |

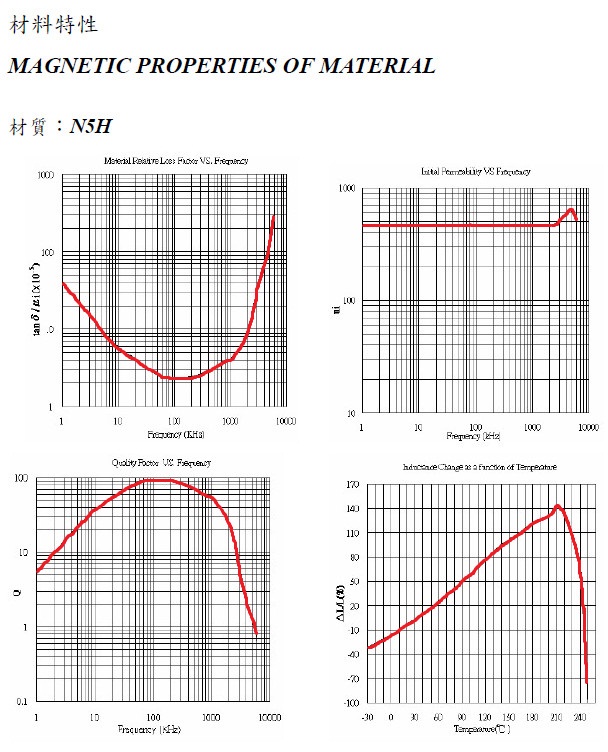

| N5H | 0.05-1.0 | 500 | 4100 | >230 | 5.1 | <2.3 0.10 | 1-4 | More+ |

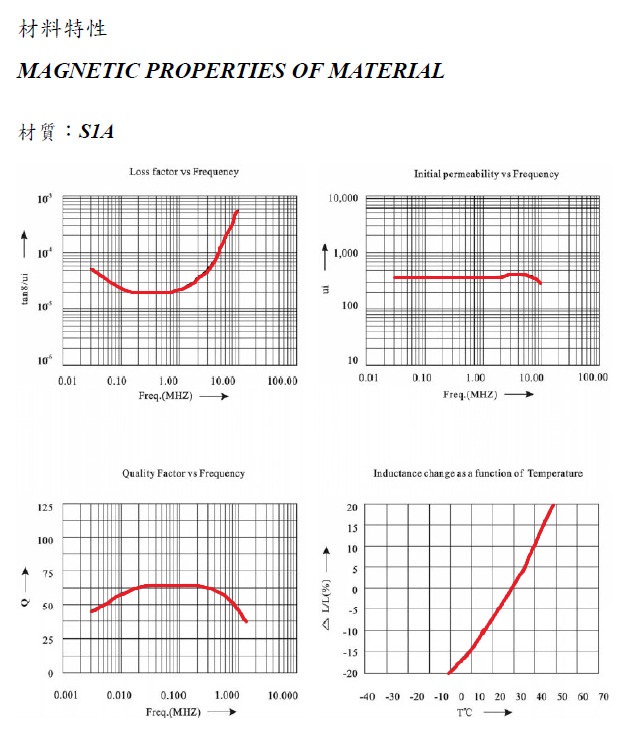

| S1A | 0.1-5.0 | 500 | 2700 | >120 | 4.7 | <35 0.10 | 25-40 | More+ |

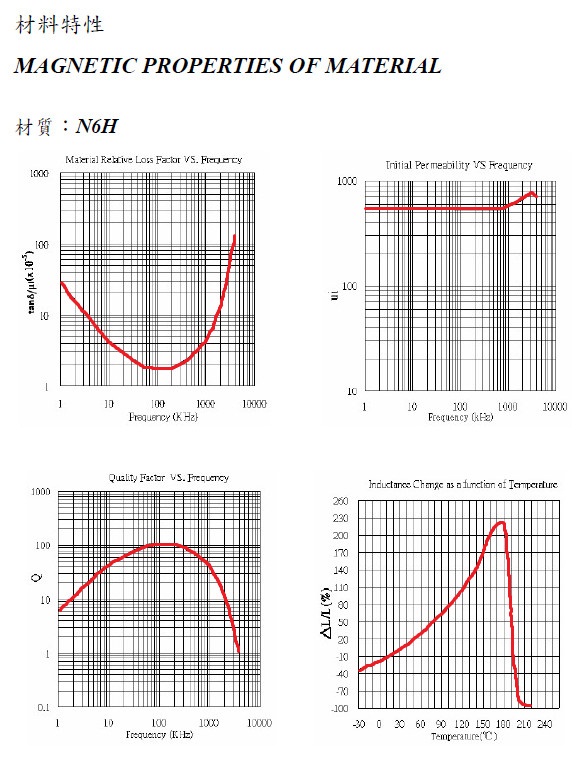

| N6H | 0.05-3.0 | 600 | 4000 | >200 | 5.1 | <17.7 0.10 | 10-30 | More+ |

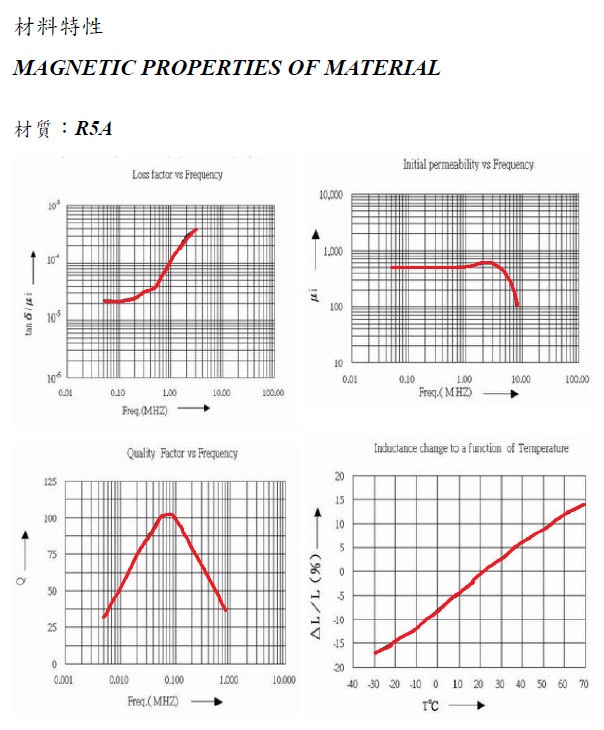

| R5A | 0.1-1.0 | 600 | 3000 | >200 | 4.7 | <50 0.50 | 10-20 | More+ |
| R7H | 0.05-1.0 | 600 | 3900 | >210 | 4.9 | <12 0.10 | 7-15 | More+ |

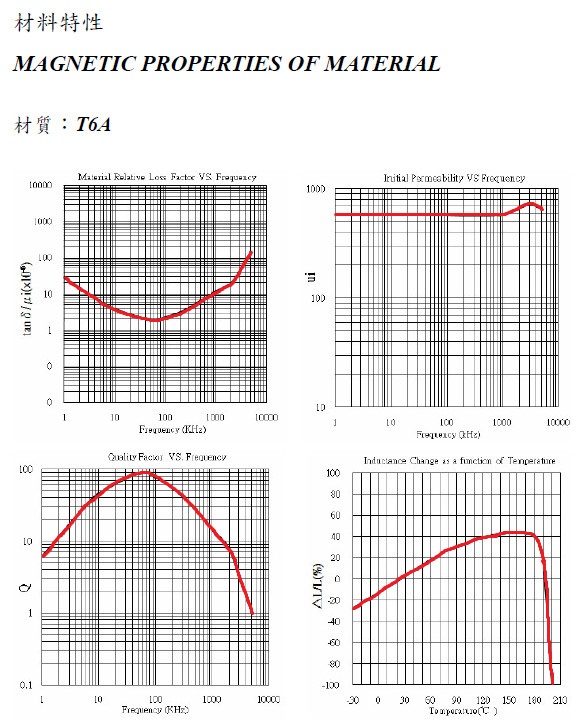

| T6A | 0.01-1.0 | 600 | 4100 | >200 | 5.1 | <2.2 0.10 | 7-12 | More+ |

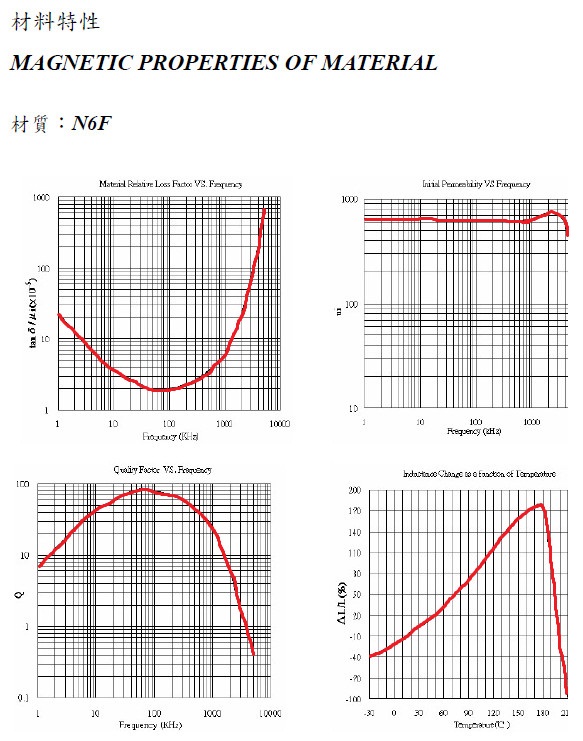

| N6F | 0.05-0.5 | 650 | 3900 | >190 | 5.2 | <2 0.10 | 27 | More+ |

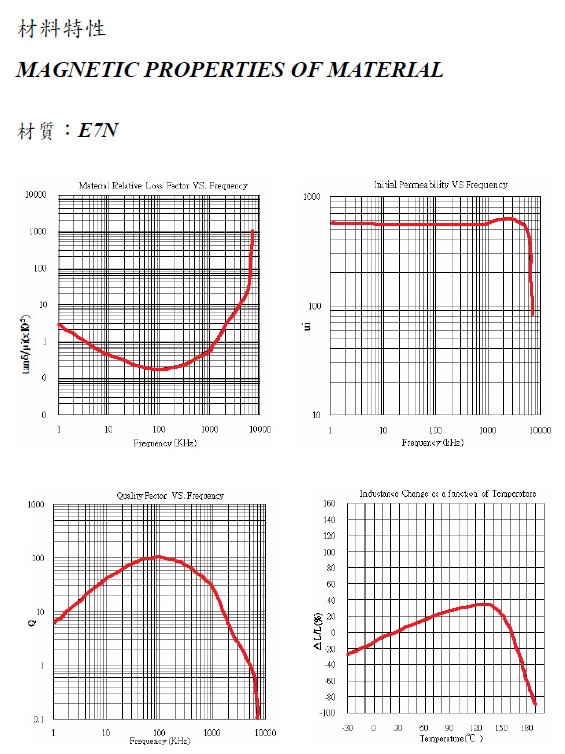

| E7N | 0.05-1.0 | 700 | 3700 | >170 | 5.1 | <15 0.10 | 7-15 | More+ |

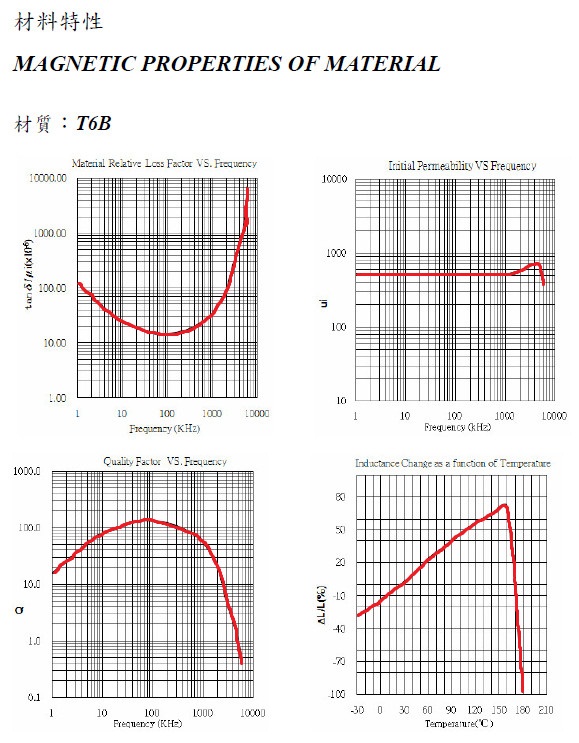

| T6B | 0.01-1.0 | 700 | 3800 | >180 | 4.9 | <16 0.10 | 8-14 | More+ |

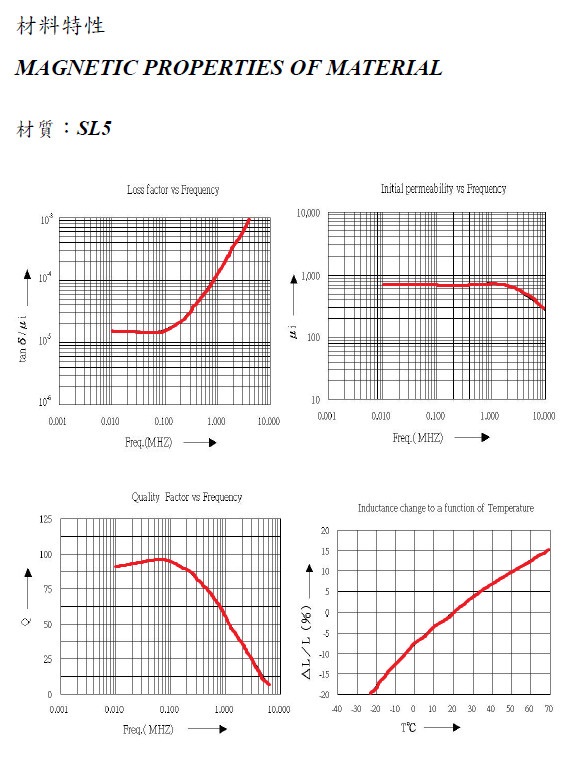

| SL5 | 0.10 1.0 | 750 | 2800 | >180 | 4.8 | <15 0.10 | 2-5 | More+ |

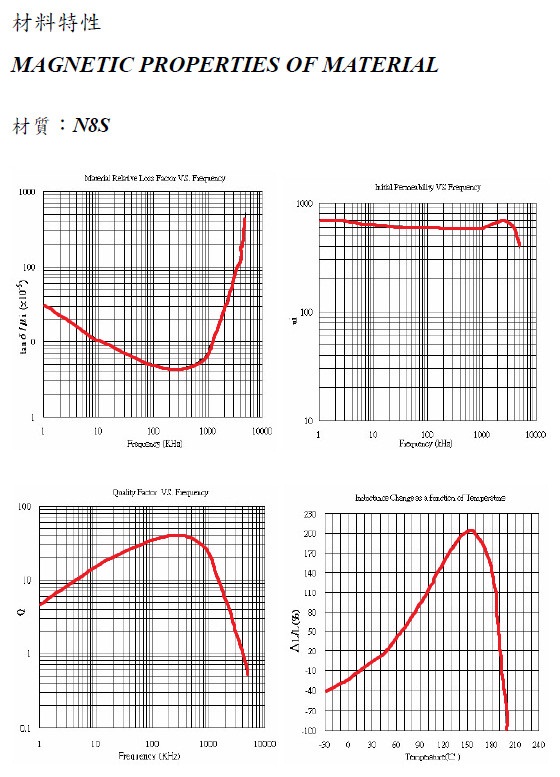

| N8S | 0.05-2.0 | 800 | 3600 | >180 | 4.9 | <4.9 0.50 | 2-8 | More+ |

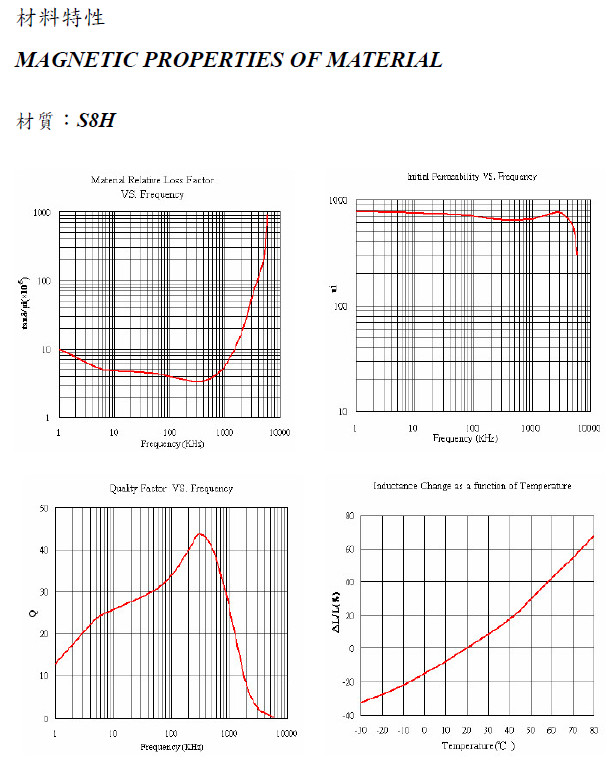

| S8H | 0.05-1.0 | 800 | 4000 | >190 | 5.1 | <970 0.10 | 8-15 | More+ |

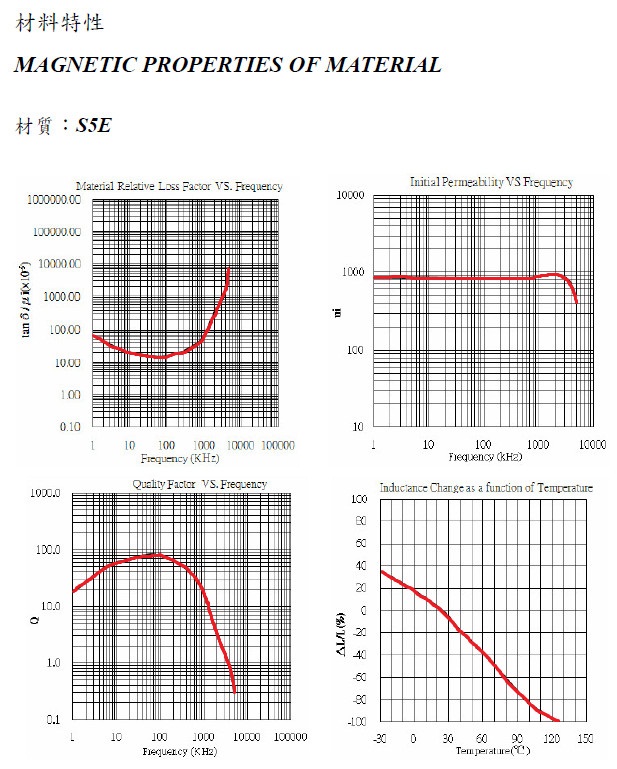

| S5E | 0.1-1.0 | 900 | 3450 | >140 | 4.9 | <15.4 0.10 | 12.1 | More+ |

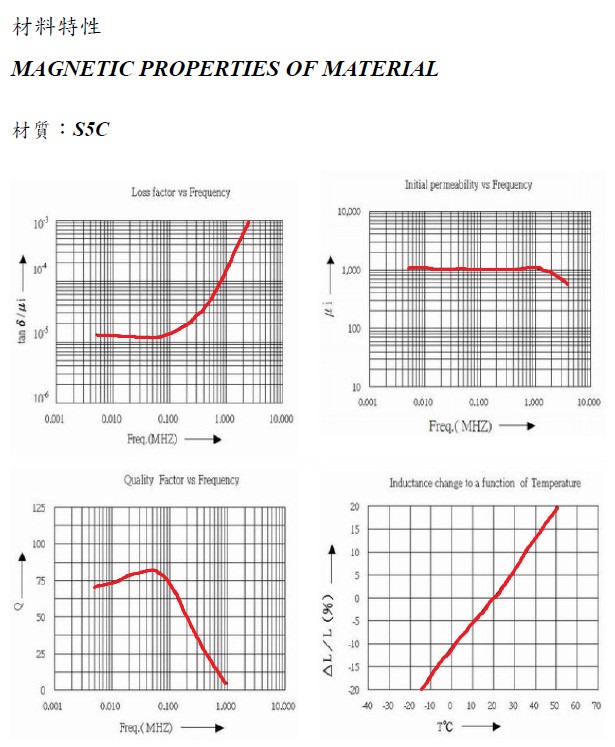

| S5C | 0.01-0.5 | 1200 | 2700 | >130 | 4.8 | <100 0.50 | 2-8 | More+ |

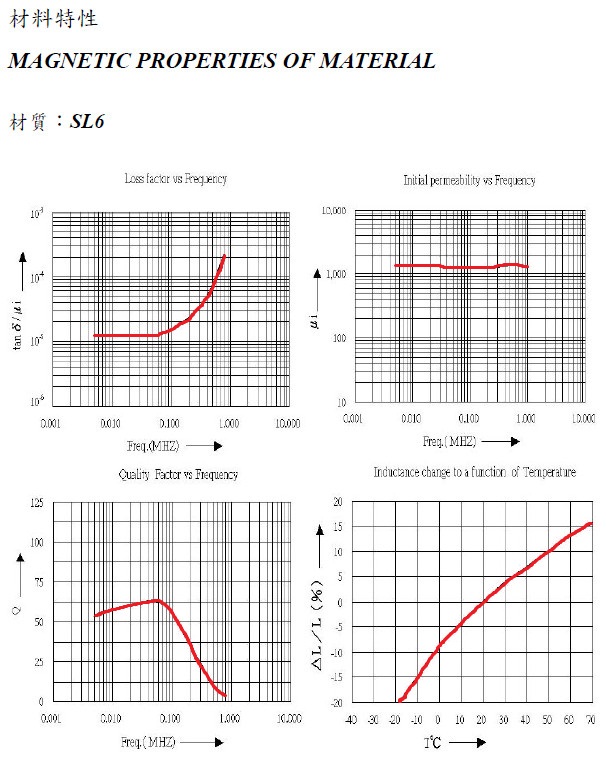

| SL6 | 0.01-0.5 | 1500 | 2680 | >100 | 4.7 | <60 0.50 | 0-3 | More+ |

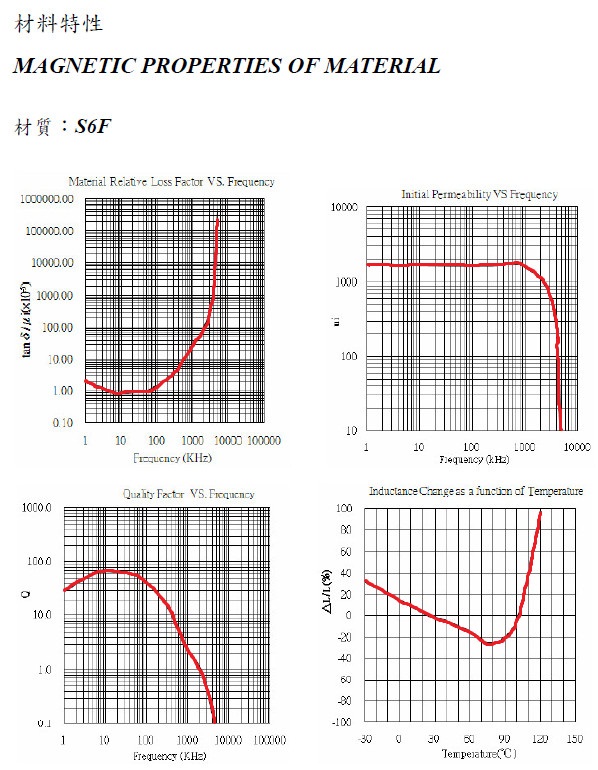

| S6F | 0.01-1.00 | 1800 | 2800 | >120 | 4.9 | <14.3 0.10 | 0-3 | More+ |

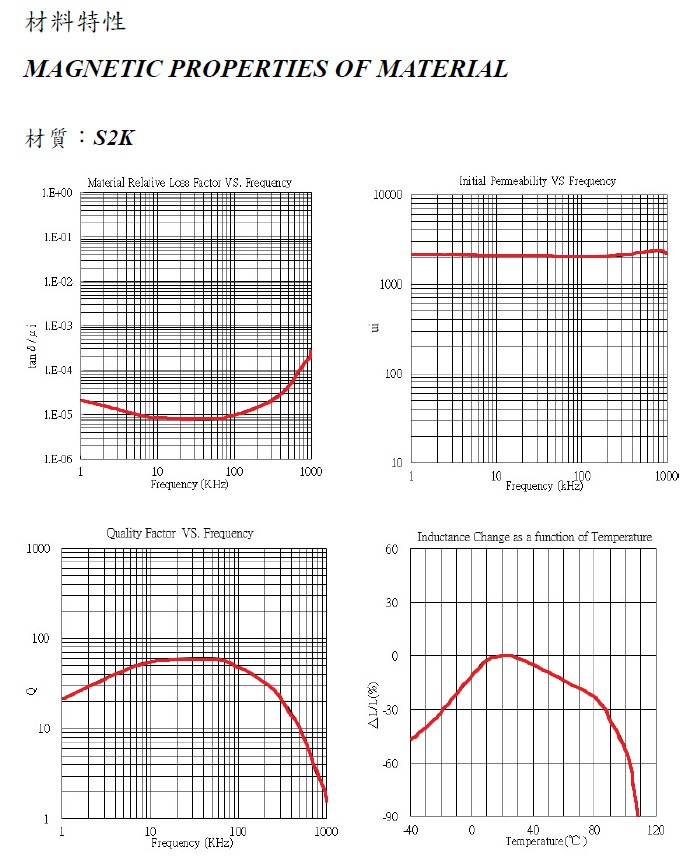

| S2K | 0.01-0.5 | 2100 | 2200 | >110 | 4.9 | <10 0.01 | 2-5 | More+ |
